特別為傳送帶或傳送器設計, 這個系列同樣適用于廣泛多樣的工業(yè)領域

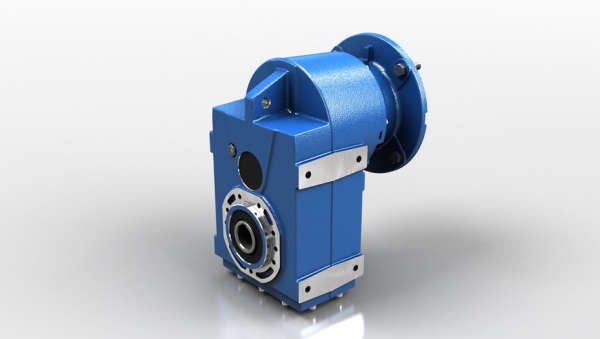

S 系列軸裝齒輪減速器提供鑄鐵型號，可選規(guī)格 050 至 125，減速比范圍寬，確保在所有操作條件下具有最大效率。
摩鐸利 S 系列推出了兩個新尺寸機型 - 140 和 150，可拓寬高功率螺旋傘齒輪減速機的安裝范圍。

型號: 050-060-080-100-125-140-150

Power from 0,12 kW up to 45 kW with three phase 4 pole motors

Reduction ratios between 4,06 and 394,69

Torque max 9.500 Nm

Admissible radial loads max 30.000 N

型號: 050-060-080-100-125

Universal casing

Versions: S... C  Foot-flange mounting / Hollow shaf - S... D Foot-flange mounting / Solid shaft - S...  L Foot-flange mounting / Shrink disc shaft

Gearing with 2 and 3 reduction stages

Modularity

Gears hardened and tempered with shaved or ground profile

Cases in EN-GJL-200 grey cast iron for high strength and optimized with FEM analysis

Excellent mechanical strength

Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001

Painted with RAL 5010  blue  epoxy-polyester powder

型號: 140-150

Universal casing

Versions:  S... C Foot-flange mounting / Hollow shaft, S... L Foot-flange mounting / Shrink disc shaft

Gearing with 2 and 3 reduction stages

Gears hardened and tempered with ground profile

Cases in EN-GJL-200 grey cast iron

Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001

Gearboxes supplied without lubricant

Painted with RAL 5010  blue  epoxy-polyester powder
